Processing UAS Data using Pix4D

Introduction

  Pix4D is a a software program which converts aerial, oblique, and ground imagery into highly accurate georeferenced orthomosaics, 3D surface models, point clouds, contour lines, and more. Pix4D can process data taken from any type of camera. Most images are taken from UAS platforms, but can also be taken from aircraft. In this lab, aerial imagery from the Litchfield mine located south and west of Eau Claire will be used. This imagery was collected in June of 2016 using the Phantom platform. The purpose of this lab is to process this imagery using the Pix4D and describe the process. It is also to generate maps from this processed data. The patterns in these maps will then be described. Before processing the data though, some basic questions will be answered below.

What is the overlap needed for Pix4D to process imagery?

  Generally, the minimum overlap needed to produce quality data is 75% frontal (in the flight direction), and 60% side (between flying tracks).

What if the user is flying over sand/snow, or uniform fields?

  Because the data points would be more difficult to distinguish in these area if a normal flight was taken, it is recommended that to get quality data, the UAS platform be flown higher off the ground and that the minimum overlap is 85% frontal, and 70% side.

What is Rapid Check?

  Rapid Check is a software which can be used in the field to quickly see if the data collected from the UAS platform was sufficient enough. Unfortunately, the results are not always accurate because it processes the the quality of the data very quickly.

Can Pix4D process multiple flights? What does the pilot need to maintain if so?

  Yes. Pix4D can process multiple flights. The pilot needs to make sure that there is sufficient overlap between the flights, and that the flights are taken under very similar conditions (sun angle, weather, traffic, etc.).

Can Pix4D process oblique images? What type of data does one need if so?

  Yes. Pix4D can process oblique images. Multiple images need to be taken at different angles for oblique images to create a quality output. It is recommended that images be taken every 5 to 10 degrees to provide enough overlap between images.

Are GCPs necessary for Pix4D? When are they highly recommended?

  No. GCPs are not necessary for Pix4D. However, it is strongly encouraged that GCPs be used when combining oblique imagery with aerial imagery.

What is the Quality Report?

  The quality report is a report which is automatically displayed once the Initial Processing is completed. It gives the description and status of  the images, dataset, camera optimization, matching, and georeferencing. This report allows the user to see if the data is ready for further processing.

Methods - Processing the Data

Step 1: Create a New Project
 First, Pix4DMapper is opened and a new project is created. It is given the name 20160616_hadley_phantom50m. The reason for this folder name is so information about the flight is easily known. The name includes the date of the flight, the location of where the flight was, the platform that was used, and the height at which the platform was flown.

Step 2: Add Images:
  Next, images have to be added. Images, from both  the Flight_1 and Flight_2 folders were added. This can be seen below in figure 3.0. In total, 68 images were added from the Flight_1 folder, and 87 images were added from he Flight_2 folder.

Fig 3.0: Add Select Images

Step 3: Edit Camera Properties
  Pix4D automatically assumes some camera settings based on the photos, but unfortunately these aren't always correct. For example, in this project the camera settings regarding the shutter model needed to be changed from "Global Shutter or Fast Readout" to "Linear Rolling Shutter". This change is circled below in figure 3.1.

Fig 3.1: Edit Camera Properties

Step 4: Choose the Output Coordinate System
  This can usually be left to the default settings. In this project the default was WGS84/UTM zone 15N. Even if this isn't the best coordinate system to use, the coordinate system can always be re-projected in ArcMap once the rasters are created.

Step 5: Choose a Processing Template
  For this project the 3D Maps template was chosen. Choosing this output template will create a DSM, and and orthomosaic using the images added previously.

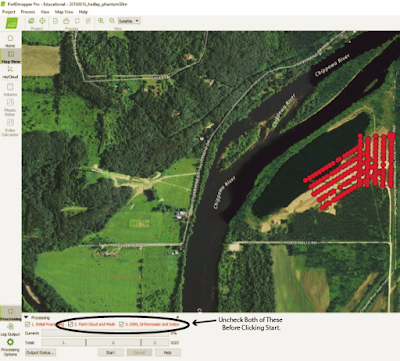

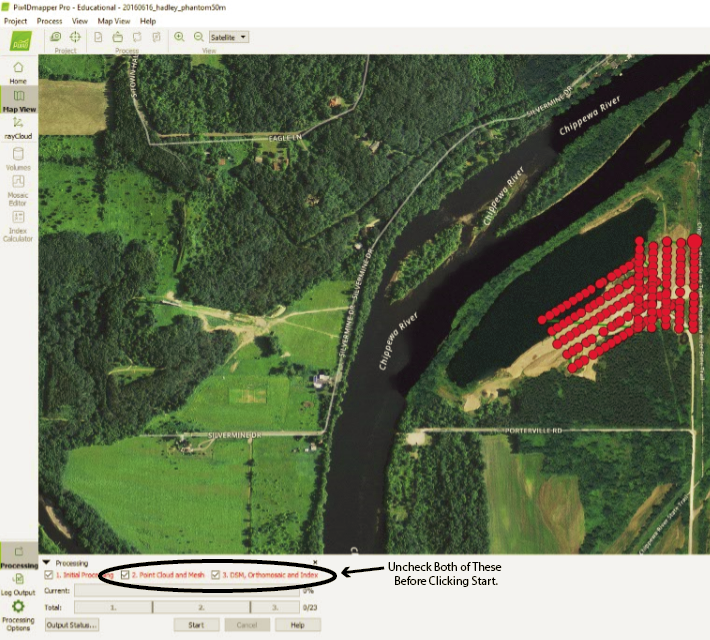

Fig 3.2: Unchecking Future Processing

Step 6: Start Initial Processing
  It is usually smart to separate the initial processing from the point cloud, and DSM/orthomosaic processing. This way, if any issues arise in the initial processing, less time is wasted as processing can take a bit of time. To make sure that only the initial processing takes place first. The two check boxes need to be unchecked as shown on the right in figure 3.2. Separately, in the processing options window under DSM, Orthromosaic and Index options, the method is changed to Triangulation. Now. the data is ready for initial processing. Figure 3.3, shows where progress of the processing can be tracked. In this figure currently 8% of step 1 of 8 is complete.

Fig 3.3: Initial Processing Progress

Step 7: Examining the Quality Report
  After initial processing is complete, a Quality Report is automatically generated. This report lets the user know whether the data is ready for further processing or if it isn't. It gives details about the accuracy of the data. Below, in figure 3.5 is the summary section of the Quality Report. This summary includes the duration of the processing, the area covered, the time of the processing, the project name, the name of the camera, and the average ground sampling distance.

Fig 3.4: Summary of the Quality Report

  Also in the Quality Report was a Quality Check section (Figure 3.5). This sections gives some more information about the processing of the data. The images used for this project overlapped well. This is noted by having 155 of 155 images calibrated. This means that none were rejected.

Fig 3.5: Quality Check Section of the Quality Report

  In the Quality Report, there was also a section about overlap. The image below in figure 3.6 was embedded within the report. It suggests that the overlapping was mostly very good as noted by the large green area. The outer fringes of the imagery is where the worst overlap occurred. This is because along the edges there were fewer images taken by the Phantom. Therefore, there were fewer images available for overlap in these areas. It can be expected that the yellow, orange, and red areas on the map below will have worse resolution than the green areas in the final product.

Fig 3.6: Overlap Section in the Quality Report.

Step 8: Start Point Cloud and Mesh, and DSM, Orthomosiac, and Index Processing

  If the Quality Report looks good, like it does in this case, the data is ready for further processing. To make sure Initial Processing doesn't repeat, that check box can be unchecked. Once the 2. Point Cloud and Mesh and 3. DSM, Orthomosaic, and Index boxes are checked the data is ready to be processed again. After this processing is complete, the data will be ready for map making.

Results/Discussion

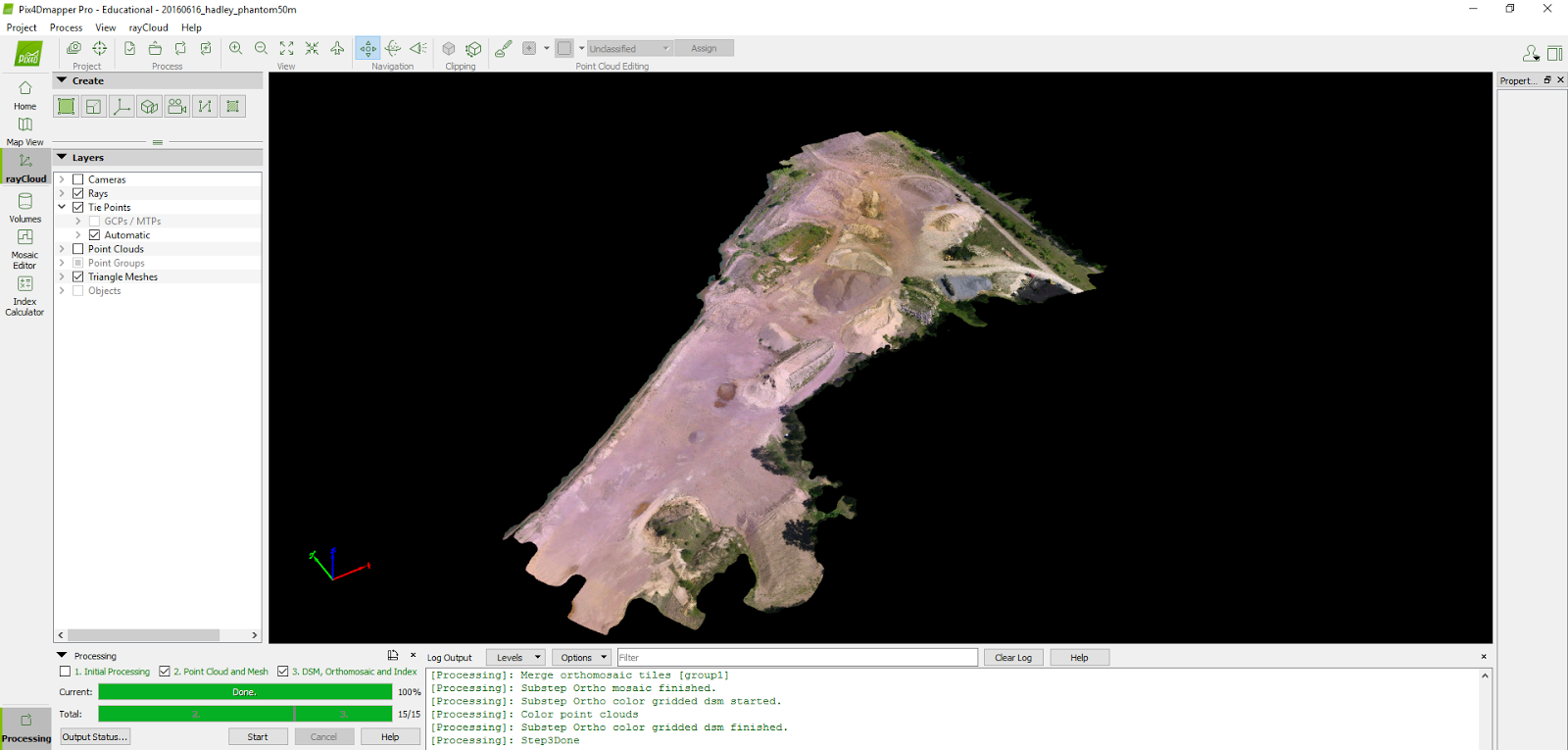

Fig 3.7: Product After Processing

  Once the processing was completed, the image shown in figure 3.7 was displayed on the screen. This image has very high resolution. In the window. one can zoom in and move around the Litchfield mine area. To better illustrate this, a short video (Figure 3.8) was created which takes the viewer on a flyby of the image Litchfield mine site generated by Pix4D. This video is a great way to help visualize the data. In the video, the immense detail can be seen in the trucks, trees, and sand piles. The video does a circle around the mine site zooming in and out at various points.

                                                                      Fig 3.8: Litchfield Mine Flyby Video

  The map shown below in figure 3.9 displays the orthomosaic overlaid with a hillshade of the Litchfield Mine. There are four main regions of the mine site: the northeast, the central, the south, and the southwest. In the northeast region, there are some sand piles, some roads, and vegetation is sparse. In the central region, large sand piles dominate. Vegetation is sparse in this area too. In some of the sand piles, one can see where the sand is being loaded into the trucks as the sand piles are not perfectly cone shaped. The south region contains the most vegetation. There are plenty of deciduous trees which are not really a part of the mine. The southwest region contains a large flat sand area with just a couple small sand piles. Overall, this map does a good job of displaying the the shape, size, location, and detail of the sand piles.

Fig 3.9: Orthomosaic Overlaid with a Hillshade of the Litchfield Mine

  A second map, shown below in figure 3.10 displays a DSM of the Litchfield mine. The highest elevation of the mine is 738 ft and the lowest elevation of the mine is 663 ft. The average elevation of the mine is 689 ft. Using the same regions as the map above, the northeast region is higher than the central region and contains a couple of sand piles. The central region is filled with sand piles, and therefore has the most varying elevation of the regions. In the south, there are some data errors. There wasn't enough overlap where the trees were, so the DSM displays that region poorly. In the southwest, there are a couple sand piles, and the elevation is sloping similar to the north region. Overall, the elevation is sloping towards the center region from both the north and the southwest. Also, excluding the deciduous trees, the sand piles can be seen with the very sharp contrast in elevation.

Fig 3.10: Digital Surface Model of the Litchfield Mine

Conclusion

  In conclusion, Pix4D is a good way to process data collected from UAS platforms. The software has a nice user interface which with just given little direction can be easily used. Pix4D is a very powerful software. This lab consisted of creating DSMs and orthomosaics, but these are just a couple of things Pix4D is capable of doing. Creating the DSMs and orthomosaics from a collection of many images allows for data analysis which would otherwise be not possible. Another important aspect about Pix4D is the rapid check function. This allows the user to know if the data collection is of good quality while in the field. This can be very useful especially if the data quality is in question to start with.

Sources

Pix4D User Manual Desktop Manual PDF

Pix4D Quality Report Help

  https://support.pix4d.com/hc/en-us/articles/202558689-Quality-Report-Help#gsc.tab=0
